Contract measurements – Linseis test laboratories worldwide
Contract laboratory for thermal analysis and thermo-physical measurements
Choose a location from our global network of laboratories that offer highly specialized test measurements for thermal analysis, thermal conductivity, and electrical conductivity.
No matter where in the world you are located, our facilities in Germany, the USA, China, India, and South Korea are available for test measurements and equipment demonstrations. You can also opt for ongoing series measurements with us.
Below each location, you will find the available equipment and the costs for the measurements. Send the forms to our laboratory, and we will provide an accurate cost estimate for your measurement.
Why Commission a Test Measurement:
- Cost Savings: No expensive purchase of equipment or testing methods before buying.
- Flexibility: Adaptation to changing requirements without equipment commitment.
- Expertise: Access to experienced professionals who conduct measurements with various materials and conditions on a daily basis.
Choose a location:
Available contract measurements:
DIL – Dilatometry
- Measurements of the coefficient of thermal expansion (CTE) and thermal linear expansion between -150°C and 1750°C
- Cost of measurement starting from $350
- According to ASTM D 696, ASTM E 228, ASTM E 831, ASTM E 1363, ASTM E 1545, ASTM E 1824, DIN 53752
DSC – Dynamic Differential Calorimetry
- Measurement of enthalpy, phase transitions, and specific heat capacity (Cp), measurement from -150°C to 1550°C
- Cost of measurement starting from $350
- According to ASTM C 351, ASTM D 3417, ASTM D 3895, ASTM D 4565, ASTM E 793, ASTM E 794, DIN 51004, DIN 51007, DIN 53765, DIN 65467, DIN EN 728, ISO 10837, ISO 11357, ISO 11409
TGA – Thermogravimetry
- Measurement of mass change, combustion residue between RT and 1550°C
- Cost of measurement starting from $400
- According to ASTM E 914, ASTM E 1131, ASTM E 1868, DIN 51006, ISO 7111, ISO 11358
STA – Simultaneous Thermal Analysis
- Simultaneous measurement of TG and DSC to determine mass change and calorimetric effects between RT and 1550°C
- Cost of measurement starting from $500
- According to ASTM E 914, ASTM E 1131, ASTM E 1868, DIN 51006, ISO 7111, ISO 11358
LFA – Laser Flash Analysis
- Measurement of thermal diffusivity, thermal conductivity, and specific heat capacity Cp between RT and 1500°C
- Measurement starting from $550
- According to ASTM E 1461, DIN 30905, DIN EN 821
THB – Transient Hot Bridge Measurement
- Measurement of thermal conductivity between RT and 150°C
- Measurement starting from $300
TIM-Tester – Thermal Interface Materials / Thermal Conductivity
- Measurement of thermal conductivity and thermal impedance between RT and 150°C
- Measurement starting from $300
- According to ASTM D 5470
HFM – Heatflow Meter
- Measurement of thermal conductivity and thermal resistance (U-Value) on insulation materials and thermal insulators between 5°C and 80°C
- Measurement starting from $350
- According to ASTM C518, JIS A 1412, ISO 8301, DIN 12667
LSR – Seebeck, Resistance, and ZT Measurement
- Measurement of the Seebeck coefficient, electrical conductivity / electrical resistance, and Figure of Merit (ZT) between RT and 1100°C
- Measurement starting from $400
- According to JIS R 1650-1
HCS – Hall Effect, Charge Carrier, and Seebeck Measurement
- Measurement of electrical conductivity / specific resistance, charge carrier density, charge carrier mobility, Hall constant, Seebeck coefficient
- Between -150°C and 00°C
- Measurement starting from $350
- According to ASTM F76-08
RITA – Inductive Dilatometry
- Measurement of phase diagrams and phase transformations in steels, CCT, CTT, TTT; measurement of thermal expansion coefficient CTE with rapid heating and cooling rates
- Between RT and 1600°C
- Measurement starting from $500
- According to ASTM A1033-04
TFA – Thin Film Analyzer
- Measurement of thermal conductivity, specific heat capacity, electrical conductivity, Seebeck coefficient, and Hall coefficient in thin films and coatings between -160°C and +280°C
- Measurements starting from $800
TF-LFA – Thin Film Laser Flash
- Measurement of thermal diffusivity and thermal conductivity in thin films and coatings between RT and 500°C
- Measurements starting from $1800
How to order a measurement:
Request a customised measurement quote using our form
Send samples to the order laboratory of Linseis Messgeräte
We carry out the measurements
After approx. 2-3 weeks you will receive the measurement results and a final report
And here are the details:
- Please request a custom quote through our contact form. In your request, provide as much detail as possible about the conditions under which your samples should be analyzed, the number of measurements planned, and any necessary sample preparation.

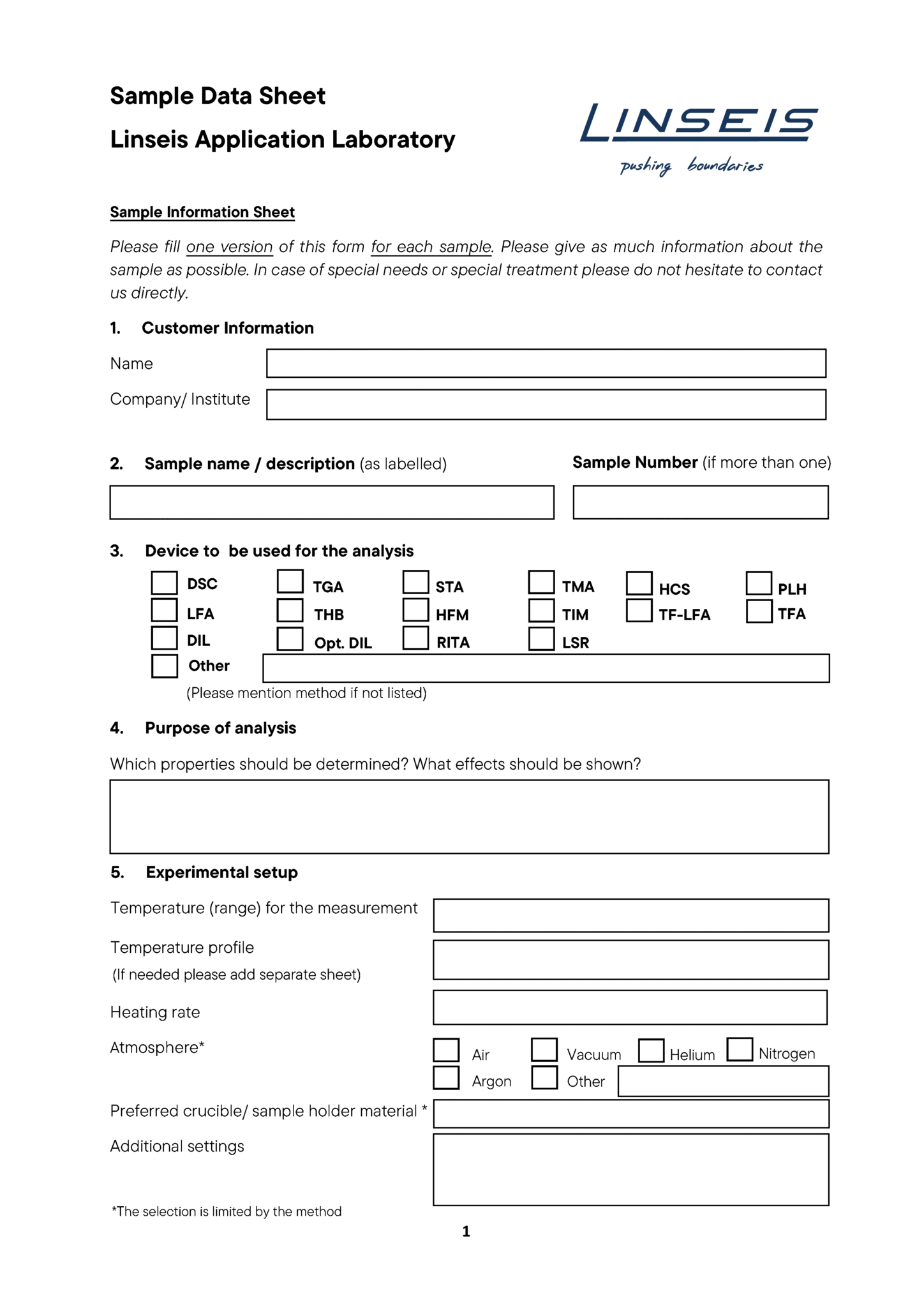

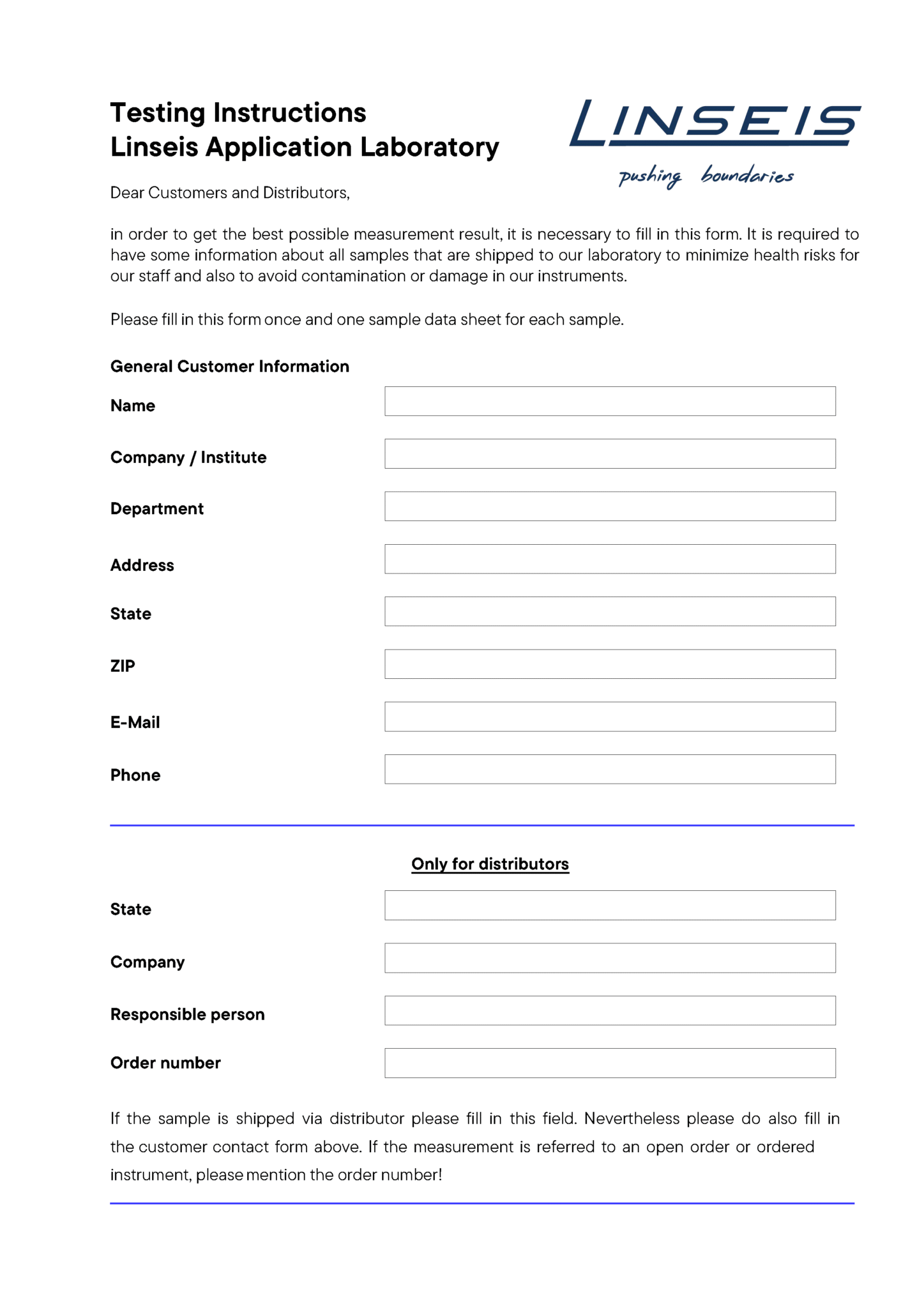

- Download and complete the two forms provided below (Sample Accompanying Sheet and Measurement Order).
- Include your Measurement Order and one Sample Accompanying Sheet for each sample in your sample shipment. This will help us identify your samples accurately. Send your samples to the following address:
Linseis Messgeräte GmbH
Contract Measurement
Vielitzerstr. 43
95100 Selb / Germany
Email: [email protected]
Subject: Contract Measurement
- Typically, the measurement can be completed within 10-14 days, and the results will be sent via email. The turnaround time depends on the measurement conditions and the number of samples.
Downloads for your contract measurement
If you have any further questions or need assistance, please do not hesitate to contact our experts.
