LINSEIS HDSC L62 – Advanced DSC for Research and Quality Control
The LINSEIS HDSC L62 is a high-temperature differential scanning calorimeter designed for maximum sensitivity, stability, and flexibility. It provides precise measurement of endothermic and exothermic processes, enabling detailed insight into the thermal behavior of materials. With a wide temperature range from -150 °C up to 1750 °C, the system is suitable for applications from polymers and pharmaceuticals to metals, ceramics, and building materials. The condensation-free chamber, short time constants, and outstanding baseline stability ensure reproducible results for both research and industrial quality control. Optional coupling with evolved gas analysis systems (MS, FTIR, GCMS) and automation via sample robot further expand its capabilities.
Unique Features
Atmosphere & Environment Control
- Automatic Evacuation
The instrument features a built-in automatic evacuation function, ensuring efficient processes and smooth operation. - Vacuum and Controlled Atmosphere
Supports operation under high vacuum (up to 10⁻⁵ mbar) as well as inert, reducing, oxidizing, or humidified atmospheres.
Optional pressurization up to 5 bar overpressure is available.
Even certain corrosive conditions can be analyzed with appropriate precautions.
Adaptability for residual gas analysis is provided via an optional heated capillary. - Controlled Humidity and Water Vapor
The HDSC L62 can regulate both relative humidity and water vapor during measurements.
This allows studies on the effect of humidity on building materials, the storage stability of pharmaceuticals and food products, or the influence on polymer properties.
Automation & Operation
Sample Robot
The HDSC L62 can be equipped with an optional, proven sample robot for unattended operation.
This enables automated measurement of up to 42 samples, maximizing throughput and efficiency.Automatic Calibration
Both hardware and software include an automatic calibration function.
The system automatically calculates and displays a calibration factor, ensuring reliable and reproducible measurements.
Gas Analysis & Safety
Evolved Gas Analysis (EGA)
Optional coupling with MS, FTIR, or GCMS provides valuable additional information.
The system can be configured with standalone or integrated mass flow controllers (MFC) for gas dosing.
Customer-specific options, such as a heated gas inlet, can also be integrated.Gas Safety System
Designed for safe operation with gases such as hydrogen or carbon dioxide.
Safety functions include:
• Automatic evacuation function
• Gas flow control for multiple gases, including water vapor and hydrogen
• Emergency shutdown function
• Integrated gas detector system (H₂, CO, CO₂, etc.)
• Optional burn-off unit for safe disposal of exhaust gases
• Continuous monitoring to ensure safe operating conditions
Integrated LINSEIS Platform
Combines hardware and software into one comprehensive solution for maximum process security and precision.
Ensures seamless integration of external components and devices, resulting in a robust and future-proof system.
Software improvements
Lex Bus Plug & Play
Our latest hardware interface Lex Bus revolutionizes data communication within our systems.
Lex Bus enables the seamless and efficient integration of new hardware and software tools.Improved furnace control
Our new and further optimized oven control system allows even more precise temperature control.
The result: more precise temperature control – exactly according to your wishes and requirements – and therefore better measurement results.New software with user interface
Our communication is now even more focused on your needs:
You are always informed about the current status and receive targeted support whenever it is needed.Process reliability
Our software has been optimized for maximum process security: Your data is protected at all times and can be processed in a fail-safe manner.Error messages and bug fixes
The system automatically detects errors and problems, documents them immediately and fixes them as quickly as possible – for minimal downtime.Online updates and new functions
Regular automatic software updates not only improve security, but also continuously bring new functions.Permanent system monitoring
The software permanently monitors all system parameters – for optimum performance at all times.Preventive maintenance and problem detection
Our preventive maintenance approach detects problems and wear at an early stage, before damage occurs – to keep your appliance in top form for the long term.
LiEAP software
Delivered with the powerful LiEAP software, which combines an extensive material database, automatic product recognition, and Python scripting support for advanced analysis. The intuitive, multilingual interface ensures ease of use for both experienced analysts and new users, while integrated automation functions streamline experiment setup, execution, and evaluation.
Highlights
Vacuum-tight construction
High sensitivity
Modularity
Wide temperature range
Optional automation
Key Features
Wide temperature range
The instruments can be equipped with up to two furnaces simultaneously.
A wide selection of different furnace types allows measurements in the broadest temperature range available on the market: -150 °C to 1750 °C.
High calorimetric sensitivity
Outstanding resolution and baseline stability ensure precise detection of enthalpy, Cp values, and subtle thermal transitions.
Vacuum and pressure capability
Measurements under high vacuum down to 10⁻⁵ mbar or under pressurized conditions up to 5 bar for maximum flexibility.
Automation ready
Optional sample robot for unattended analysis of up to 42 samples, enabling high throughput and reproducibility.
Advanced safety and gas handling
Integrated gas safety system for secure operation with hydrogen, CO, CO₂ and other gases, plus optional evolved gas analysis (MS, FTIR, GCMS).
Questions? We're just a call away!
+01 (609) 223 2070
+49 (0) 9287/880 0
Our service is available Monday to
Thursday from 8 am to 4 pm
and Friday from 8 am to 12 pm.
We are here for you!
Specifications
Temperature range: -170°C to 1750°C
Vacuum capability: down to 10⁻⁵ mbar (pump-dependent), optional pressure up to 5 bar
Heating rates: 0.01 to 100 K/min (depending on furnace)
Discover our high-performance DSC – developed for maximum sensitivity and versatility:
Calorimetric resolution: 0.3 – 1.2 mW; sensitivity up to 22.5 mW for precise enthalpy and Cp determination
Sensor options: Exchangeable DSC and DTA sensors (Types E, K, S, B, C) with various crucible materials
Temperature precision: 0.01 °C, ensuring reproducible and highly accurate results
Automation: Optional 42-position sample robot for unattended operation and high throughput
Evolved gas analysis: Optional coupling with MS, FTIR, or GCMS for advanced reaction and decomposition studies
Method
Differential Scanning Calorimetry
The HDSC L62 is a high-performance DSC designed to measure heat flows linked to physical and chemical changes in materials over a wide temperature range from −150 °C to 1750 °C. In each measurement, both the sample and a reference are exposed to the same precisely controlled heating program, while the instrument continuously records the difference in heat flow.
This principle enables the accurate detection of endothermic events such as melting, glass transitions, polymorphic transformations, or volatilization, as well as exothermic processes like crystallization, oxidation, or curing reactions. Thanks to its high calorimetric sensitivity, short time constants, and excellent baseline stability, even subtle transitions can be reliably quantified.
The vacuum-tight design allows operation under high vacuum (up to 10⁻⁵ mbar), pressurized conditions (up to 5 bar), and controlled atmospheres, ensuring reproducibility under real-world conditions. Coupling options with MS, FTIR or GCMS further expand analytical capabilities, providing detailed insights into evolved gases during reactions.
With exchangeable DSC and DTA sensors (Types E, K, S, B, C) and optional automation via a 42-position sample robot, the HDSC L62 combines flexibility, precision, and efficiency. It is ideally suited for applications in polymers, metals, ceramics, pharmaceuticals, building materials and food, supporting both advanced research and routine quality control.

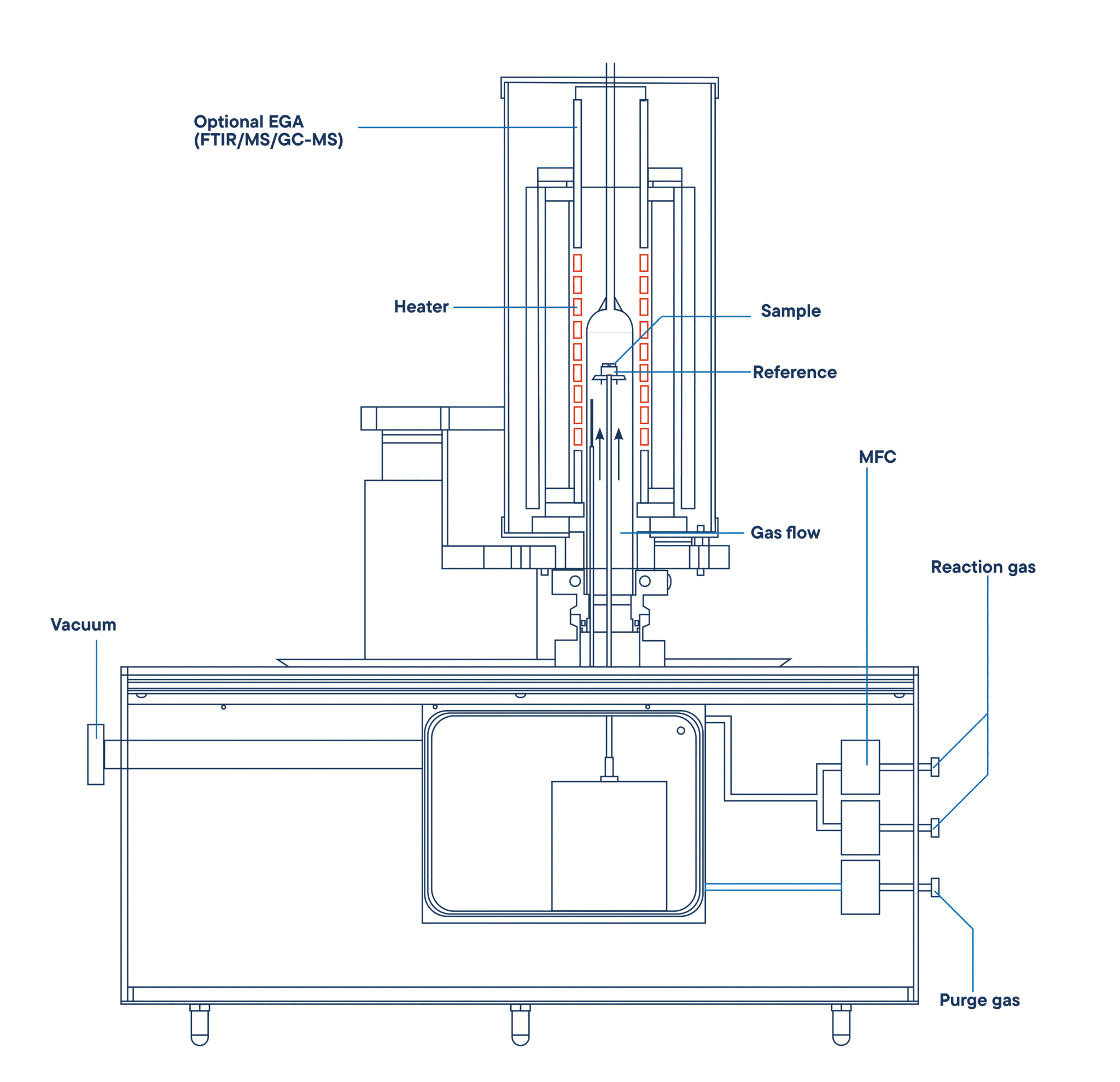

Functional principle of the HDSC L62
The HDSC L62 records the heat flow difference between a sample and a reference material during a precisely controlled heating or cooling program. Both are placed in separate crucibles within a high-stability furnace and are subjected to identical conditions.
Throughout the entire temperature cycle, the instrument continuously measures heat flow, enabling the detection of endothermic events such as melting, glass transitions, enthalpic recovery, or polymorphic transitions, as well as exothermic processes like crystallization, oxidation, or curing reactions.
With its high calorimetric sensitivity, short time constants, and condensation-free chamber, the HDSC L62 provides excellent resolution and baseline stability. The vacuum-tight design supports measurements under high vacuum, pressurized, or controlled atmospheres, while optional coupling to MS, FTIR, or GCMS adds valuable insight into evolved gases.
Thanks to its modular concept with interchangeable DSC and DTA sensors and an optional 42-position sample robot, the HDSC L62 delivers highly accurate, reproducible results for applications in polymers, metals, ceramics, pharmaceuticals, building materials, and food products.
Measured variables with Differential Scanning Calorimetry
Possibilities of thermal analysis using DSC:
- Specific heat capacity (Cp)
- Melting and crystallization behaviour
- Glass transition
- Degree of crystallinity
- Oxidation stability
- Change in the heat flow
- Endothermic and exothermic transitions
- Determination of enthalpy
- Liquids relationship
- Product identification
- Thermal stability
- Solidus relationship
- Purity
Questions? We're just a call away!
+01 (609) 223 2070
+49 (0) 9287/880 0
Our service is available Monday to
Thursday from 8 am to 4 pm
and Friday from 8 am to 12 pm.
We are here for you!
DSC L63 explained - use, capabilities and frequently asked questions

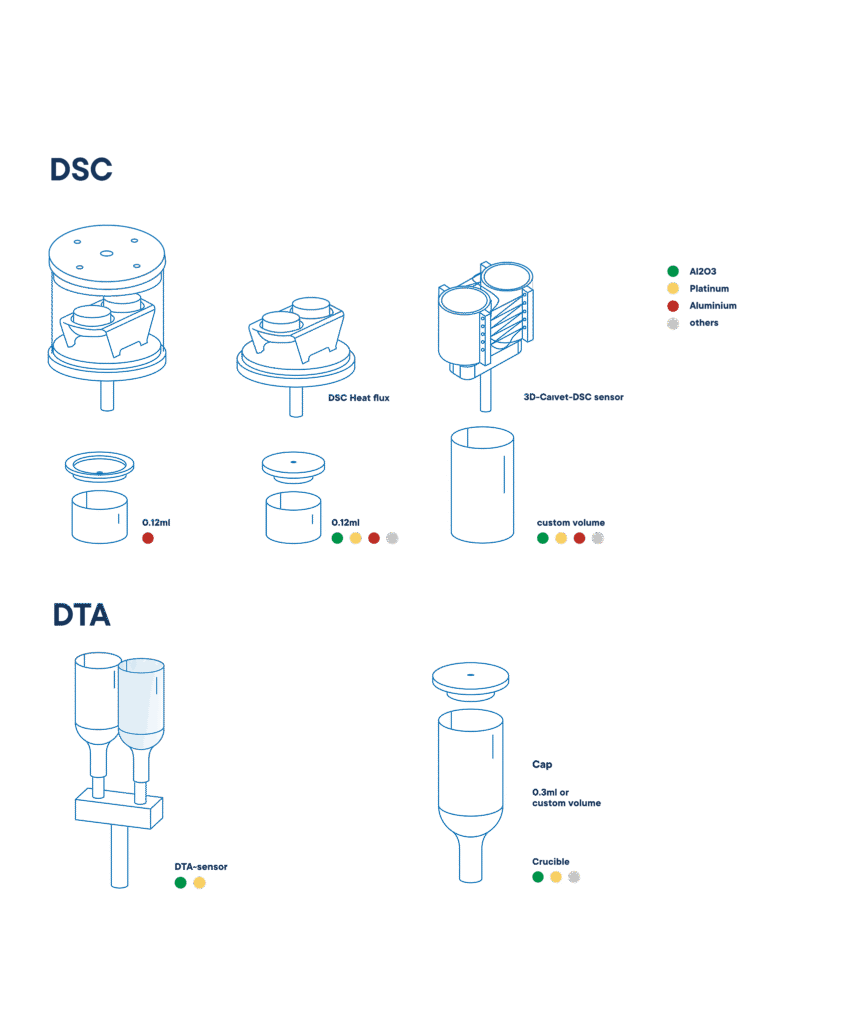

Available sensors and crucibles
Starter Kit
With every HDSC L62, you receive a dedicated Starter Kit containing all essential components for immediate system operation. The kit includes tools for sample preparation, reference materials and accessories for safe handling and initial calibration.
This ensures that you can begin generating reliable and meaningful measurement results from the very first use.
How much does a HDSC L62 cost?
The price of a DSC system depends on the selected configuration and additional options, such as the temperature range, cooling system, automation features, or specialized measurement modes. Since each system can be tailored to your specific application needs, costs may vary significantly.
For an exact quotation, please use our contact form to send us your requirements – we will be happy to prepare a customized offer for you.
What is the delivery time for a HDSC L62?
We usually have a standard HDSC L62 configuration in stock, allowing for very short delivery times. If your system requires additional options or customized configurations, the delivery time will depend on the scope of these modifications.
Please contact us via our contact form for a precise delivery estimate based on your selected configuration.
What types of samples can be analyzed with a HDSC L62?
Polymers, metals, ceramics, building materials, pharmaceuticals, and food products – under vacuum, controlled atmospheres, or pressurized conditions.
What are the advantages of the HDSC L62 compared to other DSCs?
Extremely wide temperature range (–150 °C to 1750 °C), vacuum-tight design, high calorimetric sensitivity, compatibility with evolved gas analysis (MS, FTIR, GCMS), and optional automation with a 42-position sample robot.
Software
Making values visible and comparable
The software greatly enhances your workflow as the intuitive data handling only requires minimum parameter input. LiEAP offers a valuable guidance for the user when evaluating standard processes such as melting and crystallization points.
The optional thermal library product identification tool, provides a database permitting an automatic identification tool for your tested materials such as polymers.
Data acquisition
- Shared database:
One software for many devices - Compatible with the latest Windows® operating systems
- Online updates
- Automatic gas control for multiple gases and hardware types (Optional)
- Unlimited heating, cooling and dwell time segments
- Multi-language versions such as English, German, French, Chinese, Japanese, etc. (User selectable)
- Optional password protection and user access levels
- Simultaneous data acquisition and evaluation
Data evaluation
- Includes:
Signal correction and smoothing, derivate/ integral, arithmetic operations for curves, peak evaluation, glass point evaluation, onset-
point determination, multiple curve overlay, annotation and drawing tools, copy to clipboard function, multiple export features for graphic and data export, reference based correction. - Undo and redo function for all steps
- Complete evaluation history
- Export to various data formats
- Extendable via Python plugins
Applications
Metals & Alloys
Metals and alloys form the backbone of modern industries – from automotive and aerospace engineering to electronics, energy and construction. For reliable use in demanding environments, it is essential to understand their melting and solidification behavior, phase transformations, heat capacity, oxidation stability and crystallization processes, as these parameters directly determine mechanical strength, processing conditions and long-term stability.
The LINSEIS HDSC L62 provides precise and reproducible analysis of these critical thermal properties across a wide temperature range up to 1750 °C. Whether for alloy development, quality assurance or comparison of different material grades, DSC measurements deliver the insights needed to optimize processing parameters, improve product durability and ensure reliable performance in real-world applications.
Application example: Steel (Low-Alloyed Steel)
The specific heat flow rate of a low-alloyed steel sample was measured by HDSC. At 734 °C a change in crystal structure from body-centered to face-centered cubic and a transition in magnetic properties from ferromagnetic to paramagnetic were observed. The melting point was detected at 1411 °C and the liquidus temperature at 1473 °C. All peaks are reversible and appear in the cooling segment as well. The phase transition back to the ferromagnetic state occurs at 637 °C and the crystallization range extends from 1454 °C to 1436 °C.
Application example: DSC DTA powder measurements of ferrites
The components used for production of magnetic ferrites are ZnO, Fe2O3 and Cr2O3. The Chrome oxide is added for modification of magnetic and electric properties. At 735°C the powder forms a mixed ferrite with a spinal structure (exothermal reaction: -20.6 J/g). Above 1034°C and 1321°C the heat flow changes into the endothermic direction due to melting of different phases. The LINSEIS HDSC L62 with type S measuring sensor provides a very stable baseline with an extremely low noise level up to 1600°C. This high sensitivity is essential to perform exact reaction enthalpy measurements and evaluations.
Chemicals
Chemicals are used in a wide variety of applications – from basic raw materials and additives to advanced specialty products in coatings, plastics, electronics and pharmaceuticals. To guarantee consistent quality and safe processing, it is crucial to understand their melting and decomposition behavior, glass transition, crystallinity, oxidation stability and reaction enthalpies, as these thermal properties strongly influence stability, reactivity and long-term performance.
The LINSEIS HDSC L62 enables accurate and reproducible characterization of these key parameters under controlled atmospheres or vacuum conditions up to 1750 °C. Whether for product development, process optimization or safety evaluation, DSC measurements provide valuable insights into reaction kinetics, material compatibility and thermal stability, helping to ensure reliable performance and efficient production in the chemical industry.
Application example: DSC Analysis of Talcum
Talcum (Mg3(OH)2[Si2O5]2) is a mineral that consists of hydrated magnesium silicate. It is used for the production of steatite bodies used as isolators with high resistance and a low dielectric loss factor. Its impurities (chlorite, carbonates) can be determined and detected using DSC. The measurement shows the dehydroxylation of chlorite that appears at 608°C and 848°C as endothermal DSC signals. At 768°C the removal of CO2 can be observed when the contained carbonates decompose into their oxides, releasing the CO2. Finally the dehydroxylation of talc can be seen at 937°C as an endothermal peak as well.
Modulated Cp
Application example: Modulated Cp determination
For highest possible accuracy of Cp, the LINSEIS HDSC allows the usage of modulated heating rate temperature profiles. This method causes a continuous change in heat flow of the sample and the system can monitor the heat uptake much better than with a linear heating profile. The deviation from the literature value is much smaller than with linear DSC runs. The modulated heat flow signal (dark red) leads to a significant better Cp resolution (dark blue) that is only slightly different from the literature (bright blue) over the full temperature range. The bright red curve shows the modulated heating profile.
